686x1981x44mm (27 686x1981x44mm (27") Mexicano Oak P10 Brilliant Cut Glazed Fire Door686x1981x44mm (27") Mexicano Oak P10 Brilliant Cut Glazed Fire Door686x1981x44mm (27") Mexicano Oak P10 Brilliant Cut Glazed Fire Door686x1981x44mm (27") Mexicano Oak P10 Brilliant Cut Glazed Fire Door686x1981x44mm (27") Mexicano Oak P10 Brilliant Cut Glazed Fire Door686x1981x44mm (27") Mexicano Oak P10 Brilliant Cut Glazed Fire Door
FSC Certification

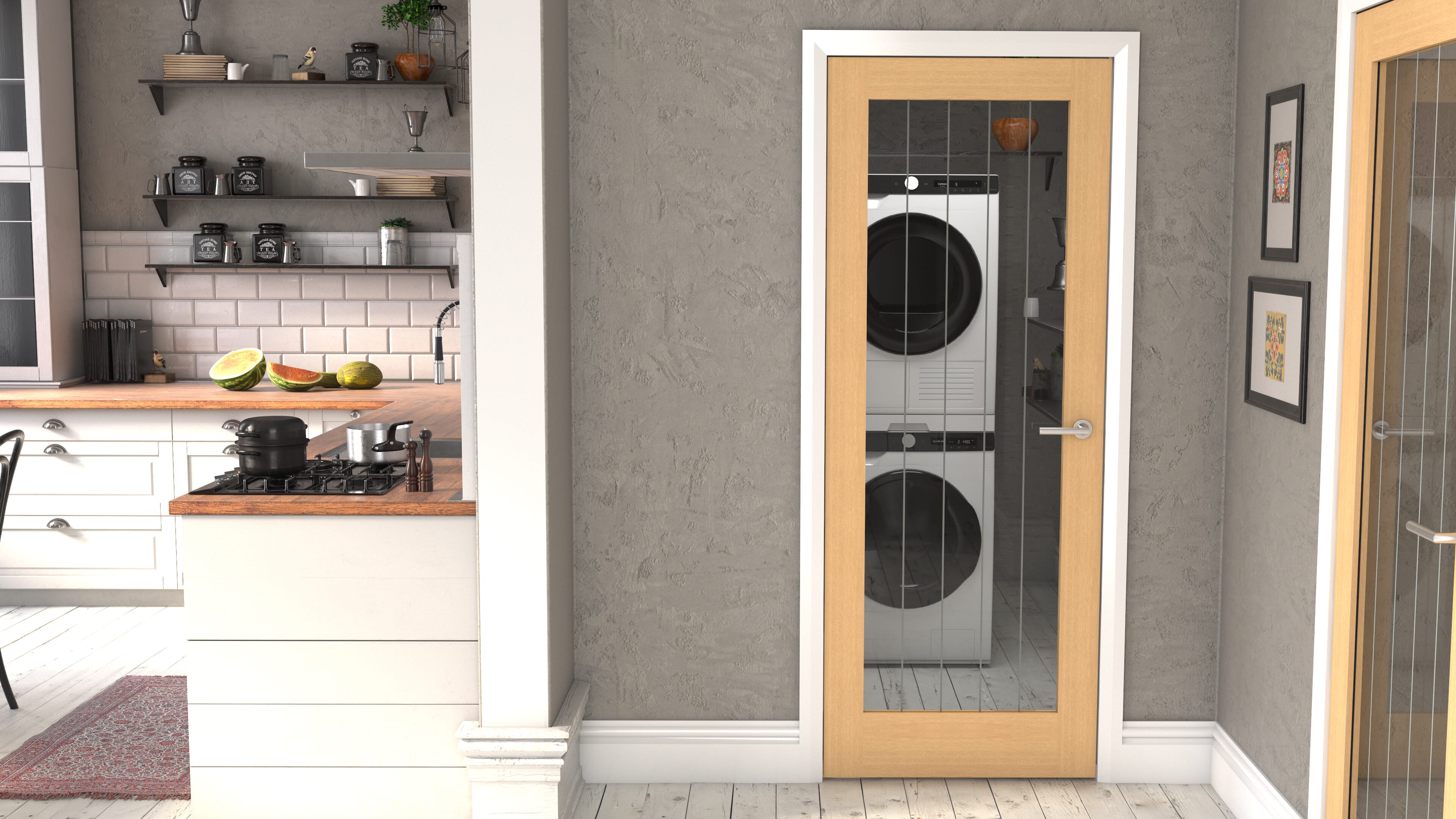

686x1981x44mm (27") Mexicano Oak P10 Brilliant Cut Glazed Fire Door

{$xx->review_stars}
On Sale

£0.00

Minus
Plus
  • ✓ Free standard delivery on orders over £750. Delivery info

  • ✓ Collection available from DE24

Have a query about our products or service?

If you have any questions about our products, service or aftercare, please don't hesitate to contact us and we'll be happy to assist you.

Stock last checked: 24/07/2026 11:57:32

View Mexicano Oak P10 Brilliant Cut Glazed Fire Door

Unfinished

Unfinished

10 Year Guarantee

10 Year Guarantee

High grade materials

High Grade Materials

Best Seller

Best Seller

Oak Veneer

Oak Veneer

Product Description

This Unfinished Mexicano Oak P10 Brilliant Cut Glazed Fire Door Internal Fire Door comes in a height of 1981mm, width of 686mm and 44mm thickness. This is a FD30 rated fire door which falls in line with current UK Building Regulations. The Glazed Fire Door is supplied with Clear Inlaid Glass.

Express Doors Direct stock a huge range of affordable Internal Fire Doors delivered to you within 3-7 working days (postcode exclusions apply).

Ideal for illuminating spaces such as hallways and longer rooms. These doors provide a blend of style and substance, exuding elegance while protecting your home from fire. Discover the allure of Mexicano Oak P10 Brilliant Cut Glazed Fire Doors today.

Features & Benefits

  • Certified FSC® Mix
  • Manufactured by CLIMADOOR
  • Oak fire doors supplied with solid fire rated core
  • FD30 rated for 30 minutes of fire protection
  • Supplied unfinished to be painted or oiled on-site
  • Complete with 6mm Fire Rated Brilliant Cut glass
  • Offered in 686mm, 762mm and 838mm sizes

Pattern 10 Doors: The Style

Transform your home with the best FD30 fire doors. The pattern 10 design is a full panel door, displaying a single, expansive glazed panel inside a slim timber frame. Unlike doors with multiple smaller panels, this design showcases a sleek rectangular shape that covers most of the door's surface area.

Robust construction ensures not only long-lasting durability but also unwavering functionality. Engineered to withstand the test of time, this fire door promises years of reliable use while preserving its pristine appearance.

Enjoy exceptional quality with glazing supplied as ‘brilliant cut’ which means the glass has physical (but shallow) grooves cut into it with a diamond saw. This etches a pattern which matches the Mexicano door style for an ornate finish.

Match with other P10 doors for a consistent look throughout your property or development. You also might like white primed P10 french folding room divider or P10 clear glass fire doors from the same collection.

Sizes

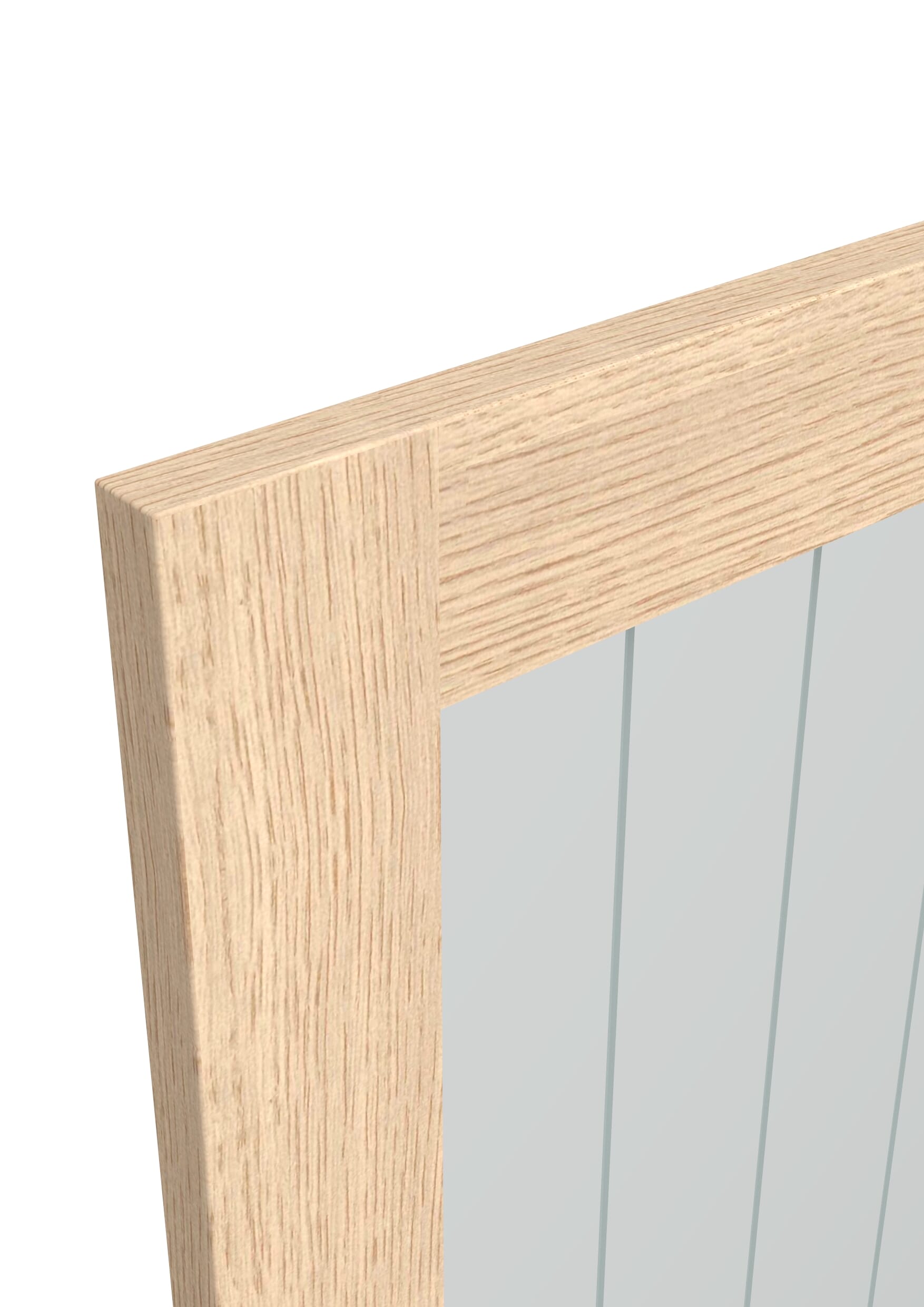

Choose from three imperial sizes (686 = 27”, 762mm = 30” and 838mm = 33”). All 44mm thick. Long and short edges are supplied with 18mm solid hardwood lippings for up to 24mm of trimming in width (12mm either side). With these FD30 fire doors, it’s easy to get a tailored fit for the perfect outcome.

Sustainability

Embodying Climadoor's commitment to sustainability, the Mexicano collection is thoughtfully sourced and holds the FSC® Mix certification (FSC-C109654).

This certification ensures that the materials used in crafting this door originate from FSC certified forests, incorporate recycled elements, and adhere strictly to FSC regulations. Great for sympathetic period property restorations and large scale developments.



By selecting this door, you actively participate in the preservation of our environment. Rest easy, knowing your choice makes a positive impact for the planet.

Due to surface area restrictions, and to ensure uniformity in panel widths, the quantity of panels per door is as follows:

  • 3-Panel Design - Widths: 457mm, 533mm & 526mm
  • 4-Panel Design - Widths: 610mm & 626mm
  • 5-Panel Design - Widths: 686mm, 711mm, 726mm, 762mm & 813mm
  • 6-Panel Design - Widths: 826mm, 838mm & 926mm
Technical Specifications
Finish
The doors are manufactured in untreated material state, with no sealant applied. These doors need to be lightly sanded and decorated by the end user
Unfinished
Material
Oak
Glazing
Clear Inlaid Glass
Brand
Width
686mm
Height
1981mm
Thickness
Non-fire rated internal doors are either supplied at 35mm thick (Imperial Doors, 1981mm (6’ 6”) or 2032mm (6’ 8”) tall) or 40mm thick (Metric Doors, 2040mm tall).

FD30 Fire doors are manufactured to a thickness of 44mm.

External doors are manufactured to a thickness of 44mm.
44mm
Product Code
VFCOMEXG27SO
Raised Moulding
No
Lipping
The lipping is the timber material around all edges of the door from which your joiner can trim the door down in height and width, as well as fit hinges/ locks too.

Trim allowances vary by lipping size, door design and fire rating - please contact us for more information about your desired door’s trim allowance.
18mm
FSC® Certification
FSC® (AKA the Forest Stewardship Council®) is a voluntary scheme that ensures strict environmental, social and ethical labour and sourcing standards are met.
FSC® Mix
Fire Rating
30-minute Fire Rated
FD30
Lipping Short Edge
The lipping is the timber material around all edges of the door from which your joiner can trim the door down in height and width, as well as fit hinges/ locks too.

Trim allowances vary by lipping size, door design and fire rating - please contact us for more information about your desired door’s trim allowance.
18mm
Lipping Long Edge
The lipping is the timber material around all edges of the door from which your joiner can trim the door down in height and width, as well as fit hinges/ locks too.

Trim allowances vary by lipping size, door design and fire rating - please contact us for more information about your desired door’s trim allowance.
18mm
Max Trim Short Edge
12mm
Max Trim Long Edge
12mm
Suitable For Use As Paired Fire Doors
Always install fire doors in-line with their associated certification document. Failure to do-so may invalidate certification.
No
